Robots get most of their attention for software, yet a good share of their accuracy is settled at the machine tool. A base plate has to sit flat. The bearing bore in a joint has to be round and in the right place. A gripper finger has to last through years of cycles without wearing out of shape. Amtec Solutions Group, a precision machine shop in Huntsville, Alabama, makes frames, joints, and movement components for robotics, and this article draws on that work to explain the parts, materials, and tolerances that matter most in CNC machining.

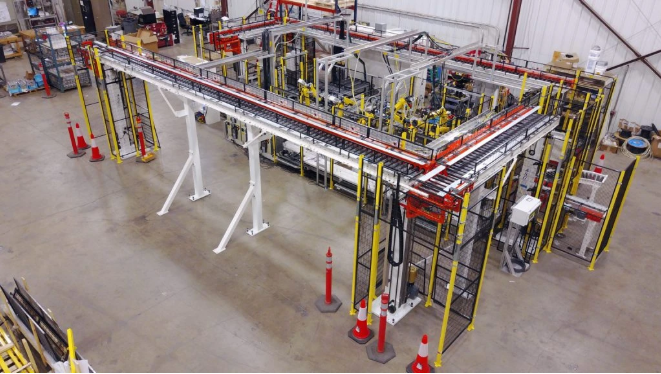

Robot Parts That Start Life as a Block of Metal or Plastic
Walk around a finished robot and most of what shows is cover. The working parts sit behind it. A base plate carries the weight of the machine. Arm links pass load from one joint to the next, and every joint has a housing for bearings and a gearbox. Each of these is ordinary CNC machining work, but with higher demands than a plain bracket, since all of them take part in motion.
Choosing Between Aluminum, Steel, Titanium and Plastic for Moving Parts
Weight comes first in most robot designs, because a motor has to speed up and stop every gram on the arm. Aluminum is about a third the weight of steel, which is why it dominates arms and frames. It bends more under load, so designers add ribs or thicker sections where stiffness is needed. The other options fill gaps:
- Steel suits parts where stiffness or wear counts for more than weight, and stainless is the usual pick for robots that get washed down.
- Titanium offers strength at roughly 60 percent of steel’s weight, but it costs more and cuts slowly.
- Brass and copper turn up as bushings and electrical contacts.
- Delrin, HDPE, and PEEK handle low-friction wear surfaces and insulating parts.
Heat adds a wrinkle. Aluminum grows about twice as much as steel as it warms, so a fit between the two can change over a long shift.
Why Tolerances Are Where Robot Accuracy Is Won or Lost
Tolerance is the deviation of a dimension that is allowable. One thousandth of an inch is about one-third of the thickness of a hair, and at this level of precision, either the bearing is sitting tightly in its housing, or else it’s wobbling just a little bit every time the joint rotates. The arm is a lever system, and a wobble at the shoulder joint translates to an error at the gripper.
Amtec Solutions Group machines to ±0.005 inch or better, and its in-house inspection supports ±0.001 inch or better. The skill lies in knowing where to use that. Bearing seats and gear mounts earn tight limits. A cover plate does not, and asking for them there only adds machine time and checking.
What the Machine and the Setup Do to Part Accuracy
Part quality depends on more than the numbers on the drawing. It also depends on how often a part has to be picked up and put back. Each re-clamp invites a small shift, and a housing with features on five sides can collect several. A 5-axis machine reaches most of those sides without unclamping, while a simple plate does fine on a 3-axis machine for less money. The Huntsville shop runs 3-axis, 4-axis, and 5-axis equipment, inspects in-house, and holds AS9100D and ITAR registration.
Preparing a Robotics Part for Quoting Without Costly Back and Forth
A lot of the time that goes into the quotation phase can be attributed to the queries raised by the shop. Providing a drawing of the latest revision, a 3D model of the part, and the critical dimensions marks down a lot of these queries. The material, number of parts, finish required, and inspection data should be mentioned in the first email. If there are chances of re-ordering the part, mention this as well.
Spending Precision Only Where the Robot Needs It
Good robot parts rarely come from tight tolerances everywhere. They come from someone deciding which few features control motion and spending the money there.
FAQs
1. Why do robot joints need tighter tolerances?
The joints house the bearings and gear components, which require perfect positioning to function properly. The frame has some tolerance for error; however, a joint with the same tolerance has sloppiness, sound, and wear-and-tear, resulting in the loss of accuracy in the arm.
2. Is stainless steel better than aluminum for robots?
Since stainless steel is resistant to water and cleaning chemicals, it is an appropriate choice for washdown environments as well as food and medical applications. However, it is much heavier than aluminum and poses a greater burden on the motor and bearings. In a dry manufacturing environment, aluminum performs better.
3. Does every robot part need 5-axis machining?
No. Five-axis machines pay off on parts with features on several faces, because fewer setups leave fewer chances for small misalignments. A flat plate or a bracket gains little from it and may cost more to run. The right machine is the one that fits the shape of the part.
4. What should be sent with a quote request?
Send the current drawing revision and a matching 3D model, with critical dimensions marked. Include the material, quantity, finish, and delivery date. If inspection reports or other paperwork are needed, mention it right at the start, since that can change both the schedule and the final price of the job.
5. Can one shop make both prototypes and production runs?
Many shops can. The Amtec Solutions Group manufactures both prototypes and high-volume parts, therefore enabling one group to follow a design from its first sample all the way through high-volume orders. Early indication of yearly volume allows the shop to develop fixtures and programs that ensure consistency of parts from one run to another.
